Disposable stone extraction basket
Scope of application: Used in urinary stone surgery, grasping, manipulating and removing stones and other foreign bodies with the cooperation of endoscope.
Product Features
1. Imported titanium-nickel alloy material is used, which has excellent shape memory performance of the basket, and the original shape can be maintained after several stone extractions;
2. The flexible PTFE outer tube has good smoothness and is easy to guide the basket through the tortuous parts;
3. Personalized push-pull handle design, easy and efficient to grab and release, convenient for clinical operation;
4. Multi-type basket head end to meet various clinical needs.
Specifications
|
Specification and model |
Outer diameter of sheath tube |
Working length |
Basket opening |

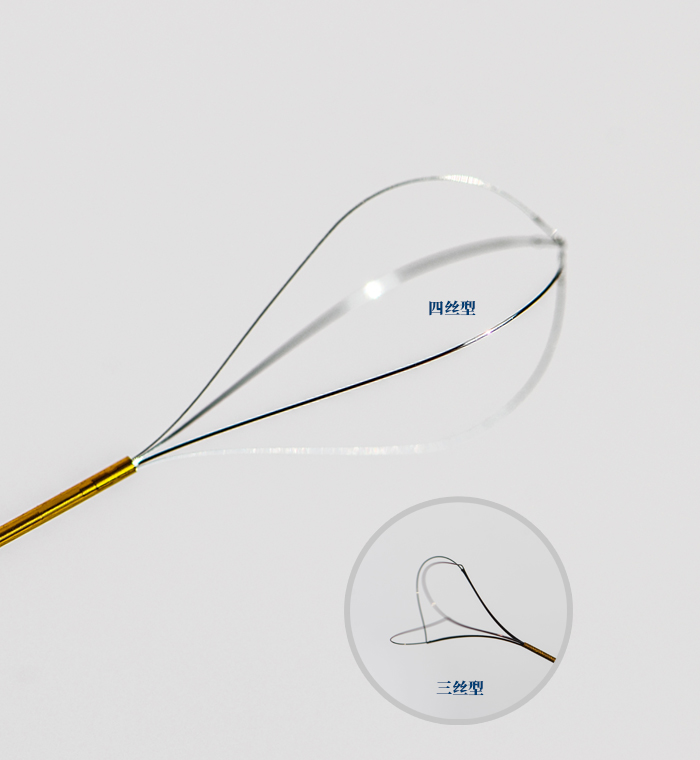

Basket type |
|
VWL-T-0855 |
0.55mm |
120cm |
8mm |
Three thread type |
|
VWL-T-1055 |
0.55mm |
120cm |
10mm |
Three thread type |
|
VWL-T-0865 |
0.65mm |
120cm |
8mm |
Three thread type |
|
VWL-T-1065 |
0.65mm |
120cm |
10mm |
Three thread type |
|
VWL-F-1055 |
0.55mm |
120cm |
10mm |
Four wire type |
|
VWL-F-1065 |
0.65mm |
120cm |
10mm |
Four wire type |
Note: For other details, please refer to the instruction manual.
