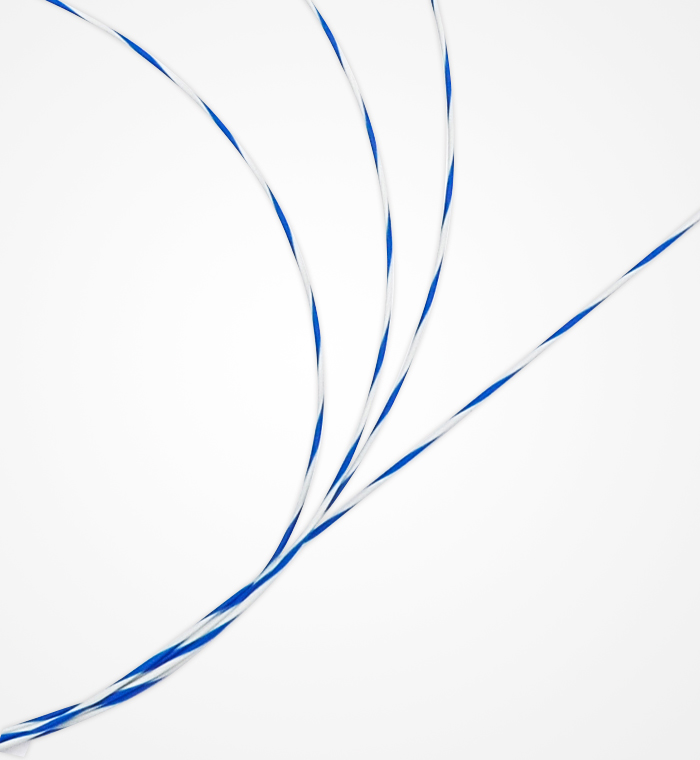

Disposable urinary tract guide wire (also known as zebra guide wire, blue zebra guide wire, loach guide wire)
Scope of application: Used for assisting catheters and minimally invasive dilation and drainage kits under endoscopy, providing support and guidance.
Product Features
1. High bending resistance: titanium nickel alloy core, good torque control and handling, excellent bending resistance;
2. Soft tip design: Unique soft tip structure to avoid potential tissue damage;
3. The ultra smooth hydrophilic coating tip makes it easier to pass through the site of ureteral obstruction, reducing damage to the ureter;
4. PTFE coating: low friction coefficient, excellent lubricity;
5. The uniform blue and white stripes on the surface help to determine the movement of the guide wire under endoscopy.

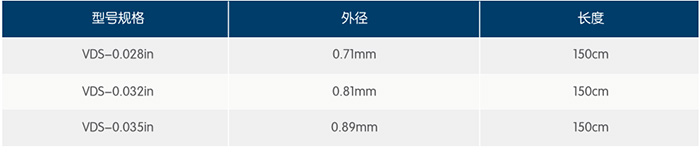

Specification and model
|
Model specifications |
Outer diameter |
Length | |
|
Common |
VDS-0.028in |
0.71mm |
150cm |
|
VDS-0.032in |
0.81mm |
150cm | |
|
VDS-0.035in |
0.89mm |
150cm | |
|
Mixed type |
VDS-H-0.032in |
0.81mm |
150cm |
|
VDS-H-0.035in |
0.89mm |
150cm | |
Note: For other details, please refer to the instruction manual.
