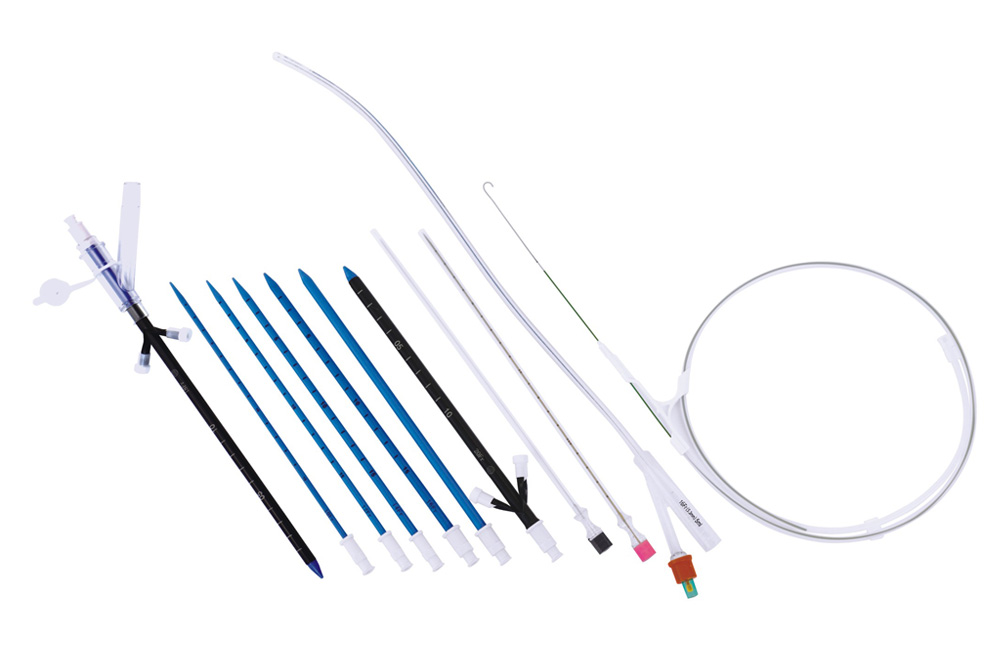

Disposable minimally invasive dilation and drainage kit (also known as percutaneous renal puncture kit, disposable percutaneous renal puncture kit, percutaneous renal dilation kit)
Scope of application: For clinical use in patients with kidney stones or hydronephrosis for percutaneous renal puncture dilation and drainage, as well as endoscopic surgical instrument placement for dilation and channel establishment.
Product Features
1. The expansion tube has good flexibility and is resistant to bending and compression, making it safer to operate. The conical tip is designed to gradually blunt, smooth and rounded, reducing damage to surrounding tissues. It can be clearly visualized under X-ray and accurately positioned;
2. The casing is made of imported PTFE material, with smooth inner and outer surfaces, low friction coefficient, excellent toughness of the pipe body, smooth tearing, and complete cross-section production;
3. The negative pressure of the Y-shaped sleeve can be adjusted, allowing for free control of the suction force. Under the action of negative pressure, the stone absorption efficiency is high, reducing intraoperative and postoperative complications and greatly shortening the surgical time.
4. The guiding needle puncture is sharp, and the needle tip is equipped with two types of diamond shaped and oblique incisions, making it highly practical;
5. The surface of the ultra hard guide wire for renal puncture is coated with PTFE, with a low friction coefficient. The back end of the guide wire is relatively hard, providing strong support, making it easy to manipulate and push the tip of the elbow inside the renal pelvis without easily falling off or damaging the tissue;
6. The renal fistula drainage tube is made of silicone material, which has good biocompatibility and a smooth appearance that is easy to insert and remove. The flattened integrated balloon makes the tube body less likely to fall off after insertion.
Specification and model
|
Component Name |
Specifications |
Effective length |
|
Diffuser |
8F、10F、12F、14F、16F、18F、20F、22F |
15cm |
|
Bushing |
14F、16F、18F、20F、22F |
10cm |
|
Y-shaped casing |
16F、18F、20F、22F |
10cm |
|
Guiding needle |
18G、22G |
20cm |
|
Renal puncture ultra hard guide wire |
0.035in |
65cm、75cm、80cm |
|
Renal fistula drainage tube |
12F、14F、16F、18F |
41cm |
Note: The above model specifications can be configured separately or in combination according to clinical needs.
For other details, please refer to the instruction manual.
Disposable Minimally Invasive Dilation and Drainage Kit Registration Certificate Number: Xiangxie Approval: 20212031899
